​Empowering Superior Design: An Introduction to DFQ in SIDesigner

I. Introduction to DFQ

DFQ (Design for Quality) is a methodology focused on identifying and resolving potential quality issues as early as the design stage. By integrating quality into the initial architecture, companies can significantly reduce development costs, improve efficiency, and ensure a smooth transition to mass production.

1. DFQ Integration in SIDesigner

Julin Technology’s high-speed signal simulation platform, SIDesigner, features a built-in DFQ plugin. Through a graphical interactive interface, it provides users with:

• Efficient DOE (Design of Experiments): Streamlined experimental setups.

• Parallel Simulation: Support for both LSF cluster computing and local parallel processing.

• Predictive Modeling: Establishing high-accuracy models via mathematical fitting.

• Powerful Data Post-Analysis: Advanced tools for deep data exploration.

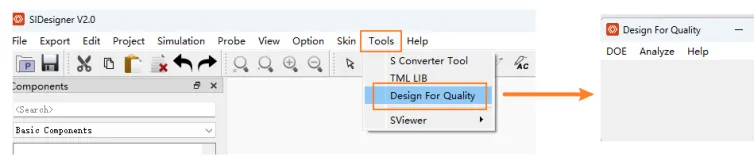

[Image Placeholder: DFQ Plugin Interface in SIDesigner]

2. Benefits of the DFQ Workflow

• Early Prediction: Forecast Signal Integrity (SI) issues (reflection, crosstalk, loss) during the hardware design phase to avoid expensive late-stage revisions.

• Constraint Definition: Clearly define design constraints for impedance control, routing rules, and termination strategies.

• Reduced Iterations: Minimize the need for physical prototypes, shortening the time-to-market.

• Design Robustness: Ensure the design performs reliably across various conditions.

DFQ enables users to discover superior designs faster by enhancing experimental efficiency and providing deep insights through predictive analytics.

II. DOE: Design of Experiments

DOE is a systematic method used to explore and verify how input factors influence output results.

The history of DOE is marked by several key milestones:

• 1920s: Founded by R.A. Fisher for agricultural yield optimization.

• 1947: C.R. Rao introduced Orthogonal Arrays for planning multi-parameter experiments.

• The Golden Age: George Box developed Response Surface Methodology (RSM), bringing DOE into industrial engineering.

• Post-WWII: Genichi Taguchi developed "Taguchi Methods," which became a cornerstone of Japanese quality management.

The Julin DFQ tool utilizes RSM-based hypothetical models to design and tabulate DOE experiments. This approach overcomes the limitations of traditional orthogonal designs when dealing with non-linearity and detailed optimization exploration.

III. Simulation

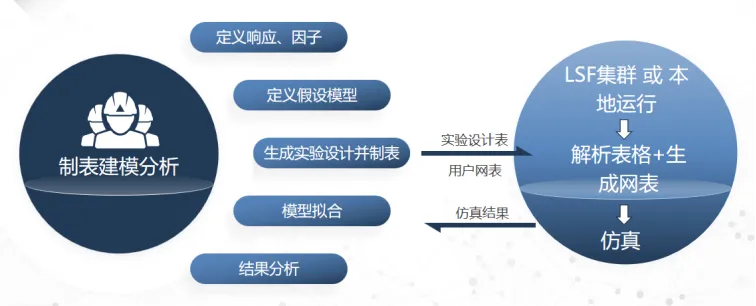

The DFQ tool includes a Netlist Parallelism simulation plugin. Through its visual interface, users can pre-set netlists and parameter variables, customize running configurations, and complete the entire "Import-Parse-Simulate-Collect" process with a single click.

The tool supports LSF Cluster Computing and Local Parallel Simulation, allowing users to choose the most efficient environment based on their hardware resources.

IV. Model Fitting

Once the experimental data is collected, the next step is Model Fitting using Response Surface Methodology (RSM). RSM employs least-variance fitting techniques to link inputs and outputs via linear equations.

The general form of a Response Surface Model is:

Where:

For high-speed signal analysis, a second-order model is typically sufficient:

The number of terms "k" in a second-order model is calculated as:

To provide maximum flexibility, SIDesigner supports Stepwise Fitting, allowing users to manually screen parameters or automate the entire process.

V. DAE: Data Analysis and Exploration

After establishing the predictive model, the DFQ tool provides DAE (Data Analysis and Exploration) features:

1. Actual vs. Predicted Plot: Compares simulation values with model calculations, providing metrics like R-squared, ANOVA (Analysis of Variance), and parameter estimates.

2. Profilers:

   · Prediction Profiler: An interactive tool to observe how changing one factor affects the response.

   · Desirability Profiler: Maps outputs to a 0–1 scale. The tool automatically finds the optimal solution by maximizing the desirability function.

3. Monte Carlo Simulation: Uses large-scale random sampling to estimate statistics. Input factors can be set to Random (Gaussian) or Fixed, while output noise supports Normal or t-distributions. This is used to calculate Defect Rates based on specified design limits.

4. Sensitivity Analysis: Identifies critical variables. Julin DFQ uses Global Sensitivity Analysis, assessing the total impact of a parameter over its entire range.

VI. Case Study: DDR Simulation

This case study illustrates the DFQ workflow for a DDR design.

• Inputs: Process corners, packaging, voltage, and ODT.

• Outputs: Eye Width, Eye Height, and Center Voltage.

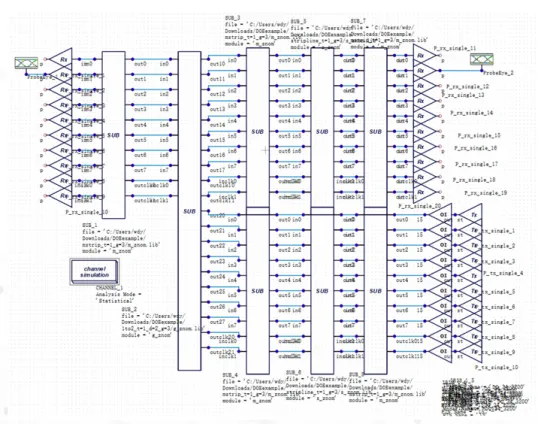

[Image Placeholder: DDR Signal Link Topology]

Workflow:

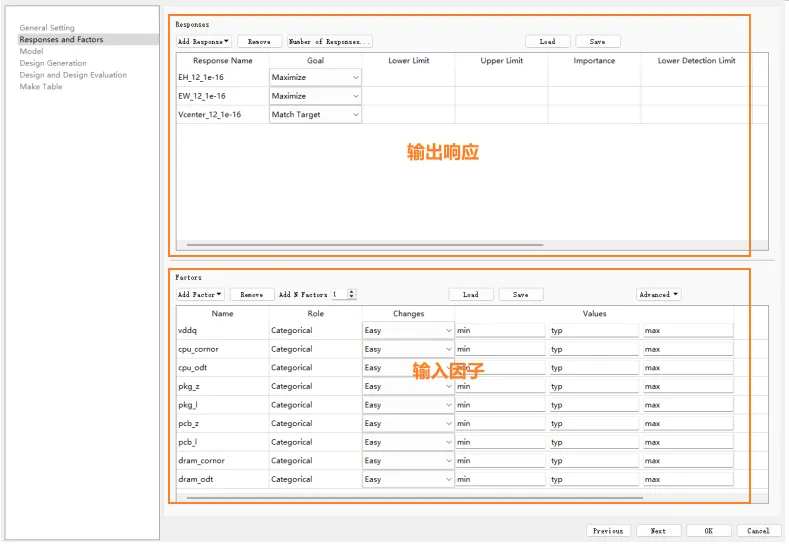

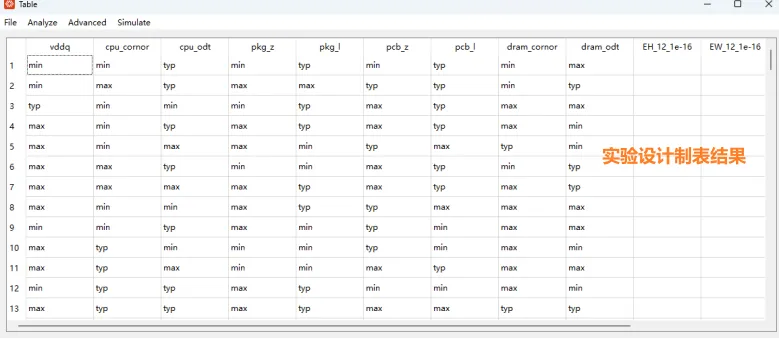

1. Launch DFQ Wizard: Complete the DOE experimental design and table generation.

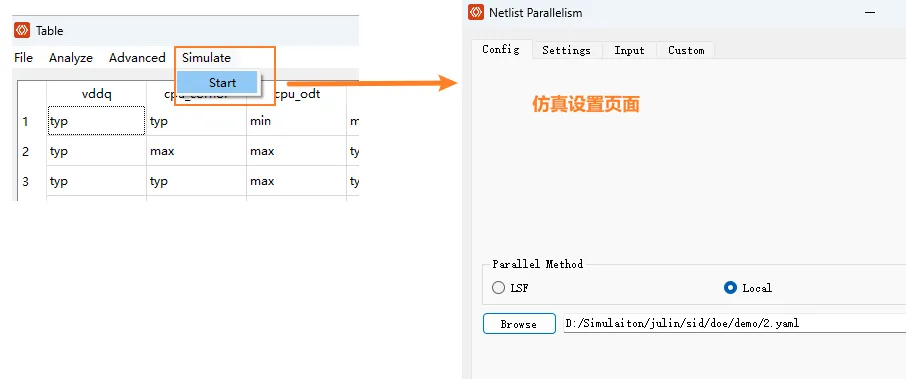

2. Run Simulation: Configure the simulation settings and click "Submit." SIDesigner executes the job and outputs an output.csv file.

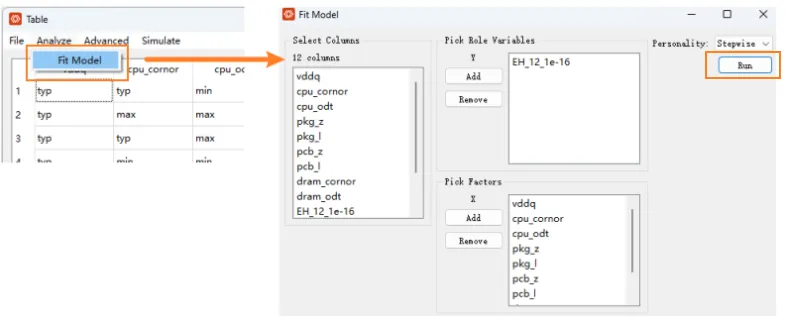

3. Import & Fit: Load the results into the Table window, select factors/responses, and run the Stepwise Fitting.

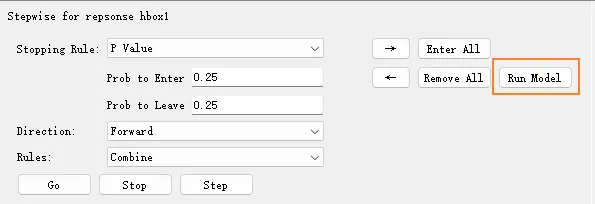

[Image Placeholder: Stepwise Fitting Interface]

Analysis Results:

After clicking "Run Model," the Regression Result window provides the following insights:

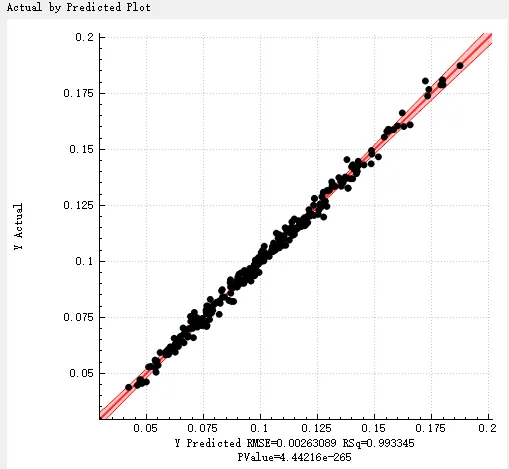

• Actual-Predicted Plot: Visualizes fitting quality.

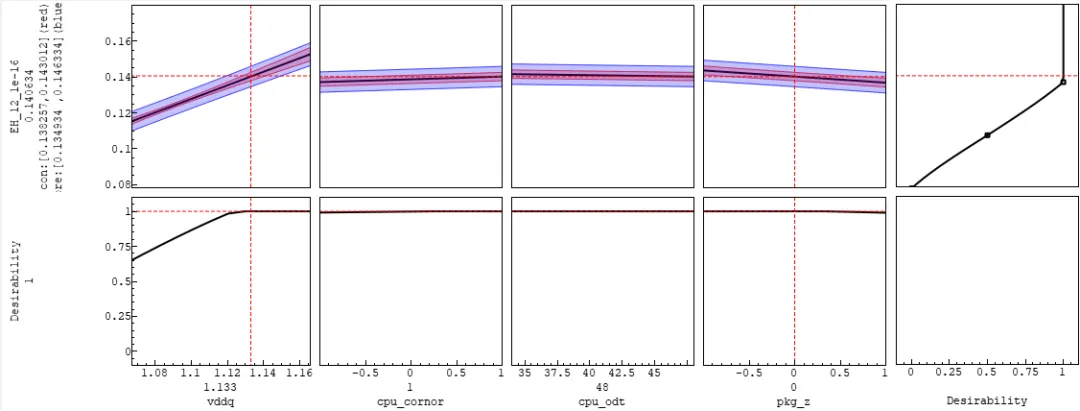

• Prediction & Desirability Profilers: Interactive optimization.

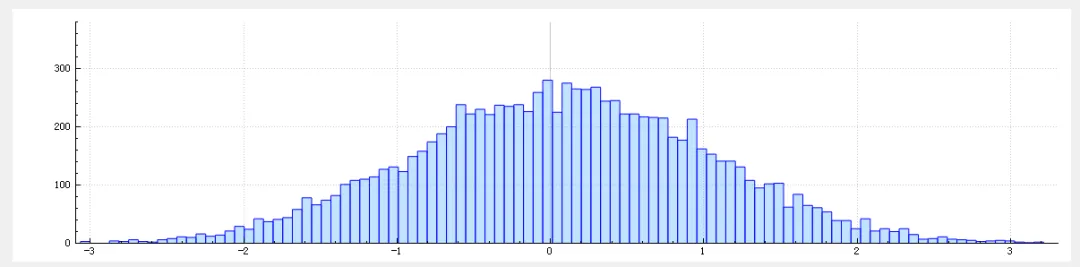

• Monte Carlo Histograms: Distribution of predicted responses.

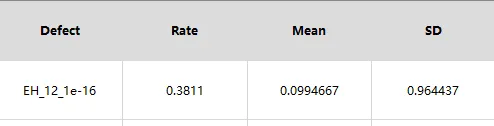

• Yield Analysis: Calculations for Mean, Standard Deviation, and Defect Rate.

• Sensitivity Indices:

           S₁ (First-order): The factor’s individual contribution to output variance.

           S_T (Total effect): The factor's contribution including interactions with others.

[Image Placeholder: Sensitivity Analysis Bar Chart]

Conclusion

The DFQ tool within SIDesigner empowers engineers to discover superior designs faster. By improving experimental efficiency, establishing predictive models, and providing deep data insights, Julin Technology helps design teams achieve the perfect balance of performance and quality.
